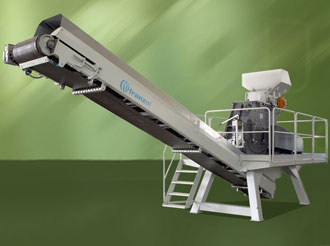

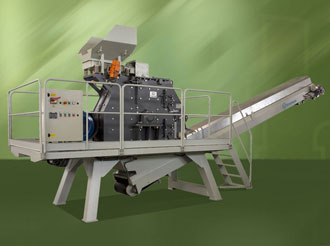

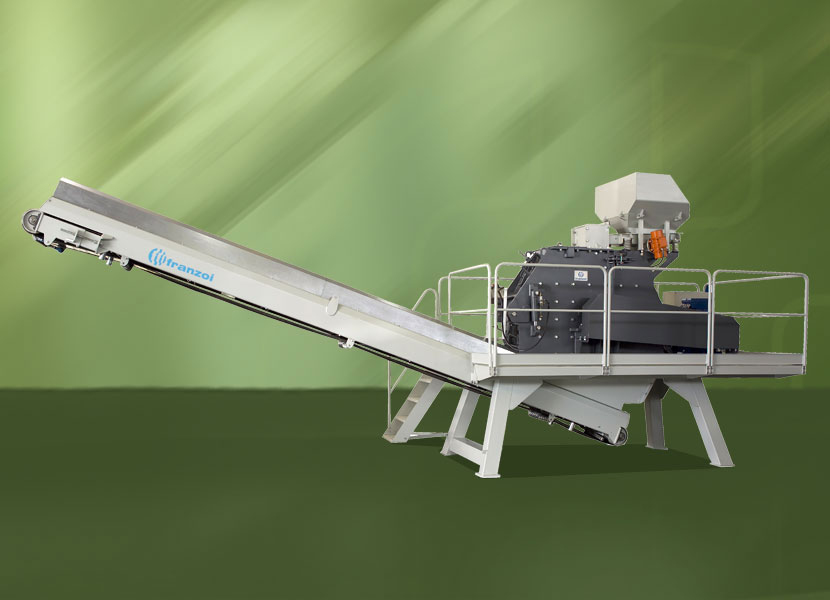

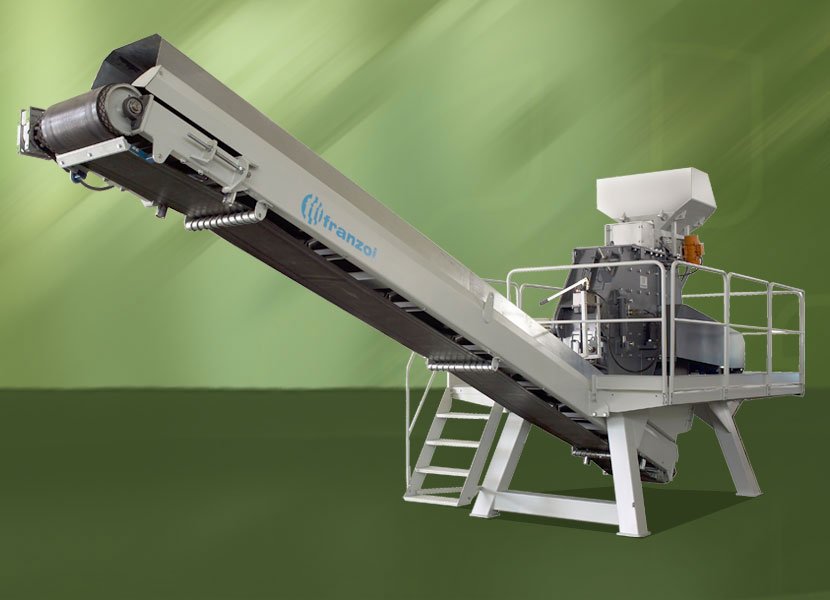

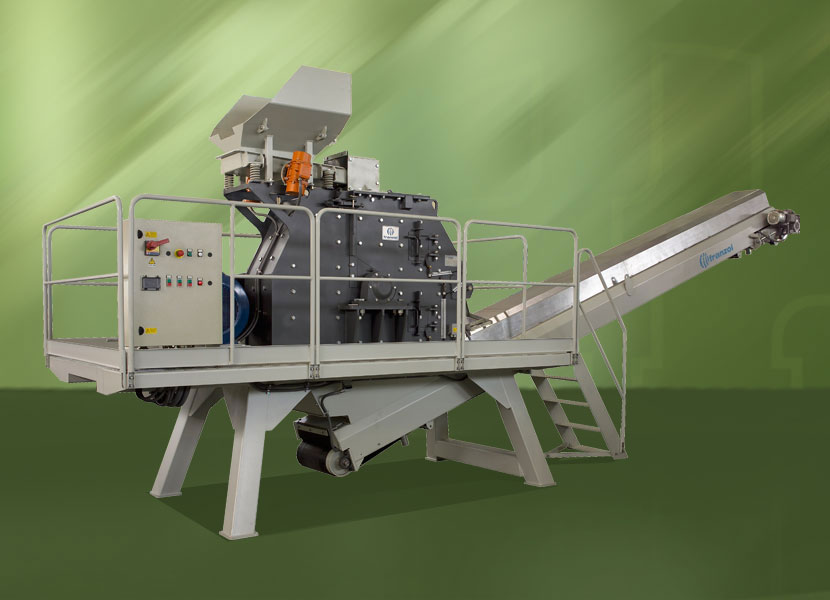

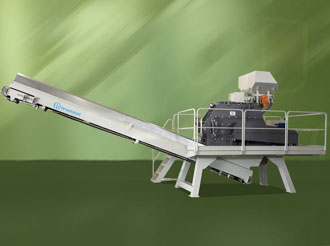

SECONDARY IMPACT CRUSHER - MTG 400

Transportable hammer mill for sand production

Accessories:

- Hydraulic armour holder controls
- Feeder
- Hydraulic control system
- Hydraulic feed opening cleaner system
- Hoist for replacing hammers

Impact crusher

IMAGES GALLERY

TECHNICAL CHARACTERISTICS

Dimensions
Length 9.760 [mm]
Width 2.270 [mm]
Height 3.490 [mm]
Conveyor height 2.830 [mm]
Hopper width 1.090 [mm]
Conveyor width 500 [mm]
Rotor diameter 1.100 [mm]
Technical data
Feed particle size max 60 [mm]
Motor power 75 [kW]
Rotor rpm. 750 ÷ 1.000 [rpm]
Output 30 ÷ 40 [ton/h]
N° hammers 2 [n°]
Hammer weight 53 [kg]
Mill weight 3.500 [kg]
Total machine weight 6.300 [kg]
