TAZ 280 - MOBILE CRUSHER

mobile crusher

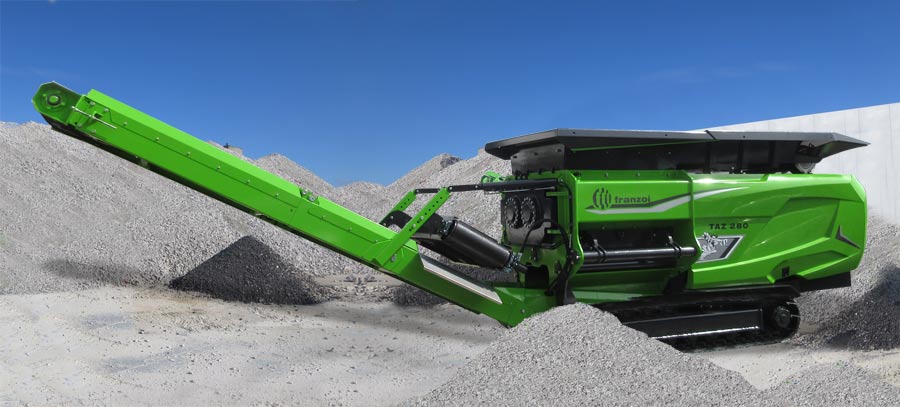

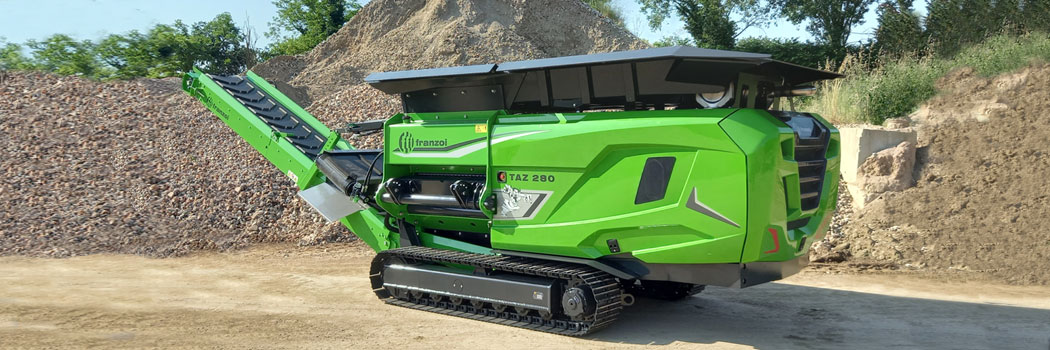

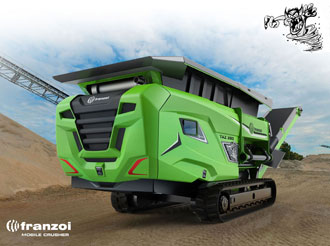

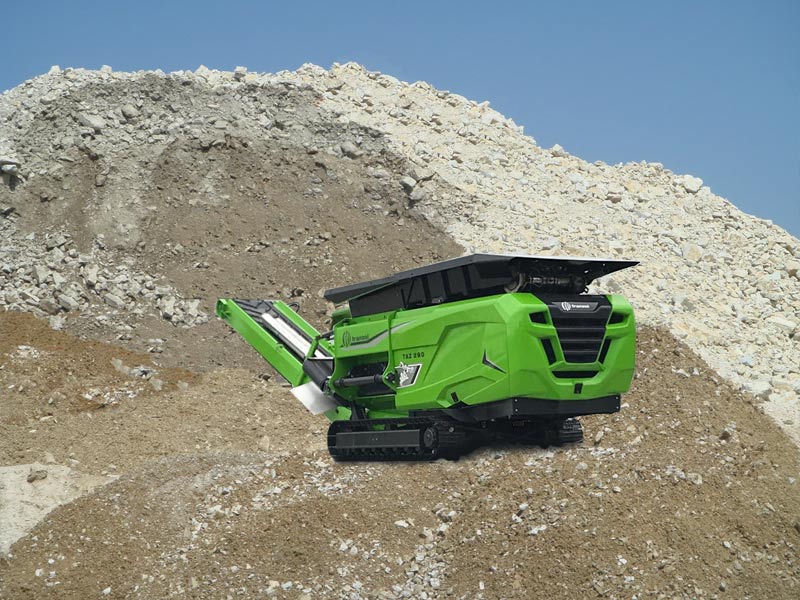

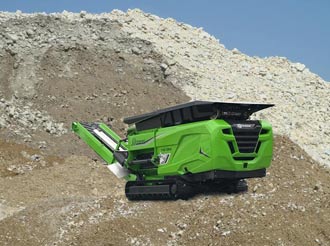

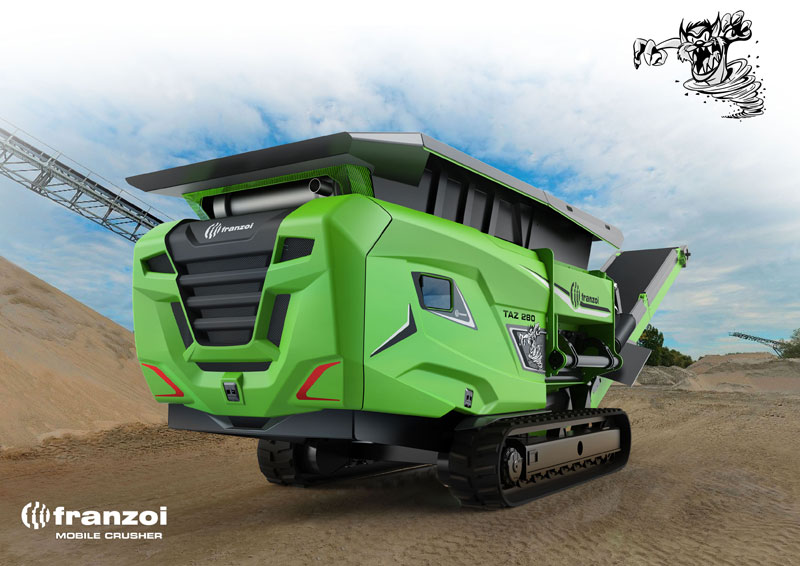

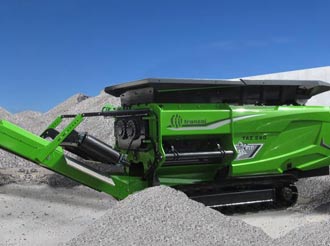

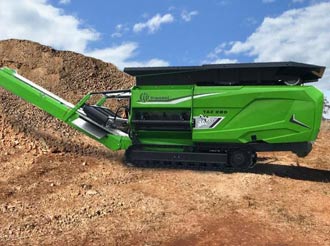

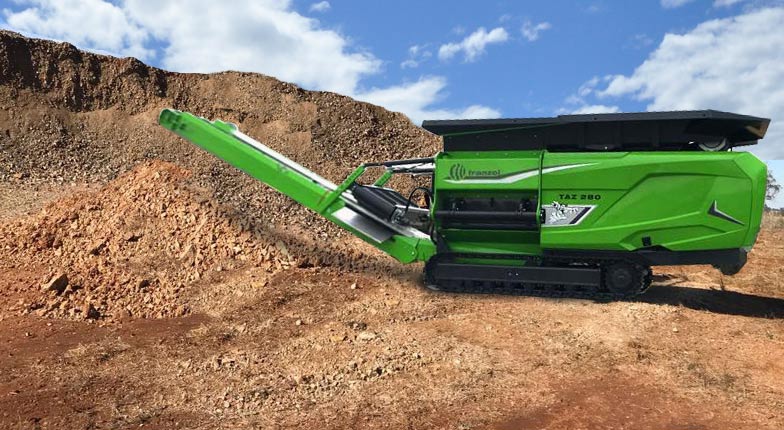

Mobile Crusher TAZ 280

IT CAN SHRED: Demolition debris, Reinforced concrete, Bricks, Asphalt, Wood waste, Furniture, Pallets, Windows, Green waste, Shrubs, Branches, Roots, Plastics.

FEATURES: Powerful Shredder Torque / 210.000 Nm, Engine 280 HP STAGE V option version 350 HP, Tilting Hopper, Magnetic separator, Easy Shafts removal kit, Openable Breaker bar generates a different final product size, Breaker bar Hydraulic opening, Pocket full radio control, Remote service, The machine can be transported in a 40’ High Cube container.


mobile crusher

IMAGES GALLERY

TECHNICAL CHARACTERISTICS

Technical characteristics
Length 9,6 [m]
Width 2,3 [m]
Height 2,9 [m]
Hopper Capacity 2,5 [m³]
Operating Weight 16 [t]
Hopper Height 2,6 [m]
Tilted hopper 4,6 [m]
Hopper Length 3,9 [m]
Throughput / Construction Debris 80 ÷ 150 [t/h]
Final Size 0 ÷ 60 [mm]
Version Folding
Folding Length 7,6 [m]
