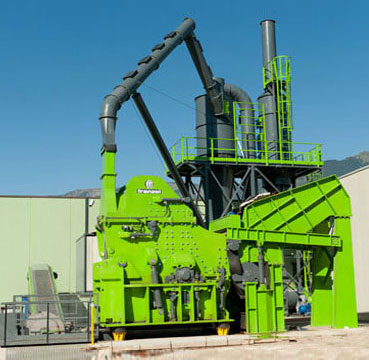

Fixed Crusher for processing scrap metal
Accessories:
- External rotor disk guards
- Feed rollers actuated hydraulically
- Upper grid
- Hydraulic mill opening
- Radio remote control
- Automatic greaser system
IMAGES GALLERY
VIDEO
PRODUCTS
| SHREDDER | Fe | Alluminio | |||||
|---|---|---|---|---|---|---|---|
| Model | Max Driving Power | Diametral rotor | Internal width | Car bodies and mixed scrap | Wrought alloys | Castings | |
| [kW] | [cv] | [mm] | [mm] | [ton/h] | [ton/h] | [ton/h] | |
| MF1212 | 641 | 860 | 1200 | 1200 | 7 - 12 | 5 - 9 | |
| MF1716 | 1110 | 1500 | 1700 | 1600 | 15 - 25 | 10 - 18 | 18 - 35 |
| MF1926 | 2200 | 3000 | 1900 | 2600 | 70 - 90 | 37 - 45 | 80 - 110 |
| MF2526 | 3000 | 4000 | 2500 | 2600 | 85 - 105 | ||
TECHNICAL CHARACTERISTICS
| Footprint | |
|---|---|
| Length | 4.280 [mm] |
| Width | 2.900 [mm] |
| Height | 4.930 [mm] |
| Feed opening | 1.700 [mm] |
| Feed height | 650 [mm] |
| Rotor diameter | 1.750 [mm] |
| Technical data | |
| Motor power | 600 ÷ 1.100 [kW] |
| Rotor rpm. | 600 [rpm] |
| N° hammers | 10 [n°] |
| Hammer weight | 72 [kg] |
| Grid holes | 70 x 140 ; 105 x 140 [mm] |
| Output | 15 ÷ 35 [ton/h] |
| Mill total weight | 75.000 [kg] |
